 You Are Here:  DD&T Home > Diamond Drill Bits > Pro-Sintered Diamond Drill Bits > 1-1/4" Diamond Drill Bit

1-1/4" Pro-Sintered
Diamond Drill Bit  DX-124

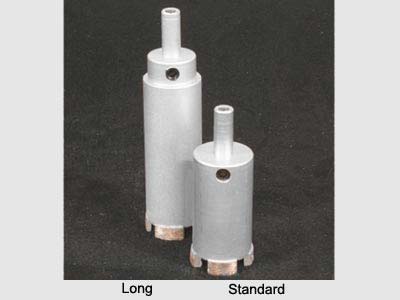

Available in Two Lengths
'Standard' or 'Long'

1-1/4 Inch Sintered Diamond Drill Bit


1-1/4 Inch Sintered Diamond Drill Bit 1-1/4 Inch Heavy-Duty Diamond Drill Bit for Tile Sintered Diamond Drill Bits for Tile Ceramic drill bit in Pan for lubrication

How to Drill Tile

Starting Diamond Drill in Tile with Template

Drill Tile with Drill Press

Tile Dill Bit with Pilot Bit

Size:

Designed for Heavy-Duty Drilling In
Porcelain Tile Brick Concrete Marble
Ceramic Tile Block Sandstone Granite
Masonry Cement Limestone Quartz

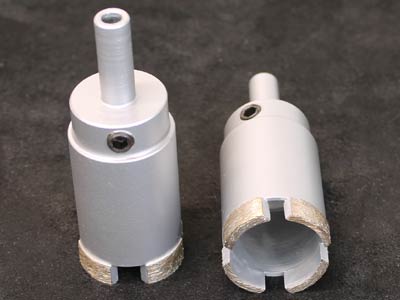

Heavy-Duty diamond drill bit.  Diamonds are embedded in tip for long life and deeper drilling.  The bit is available in two lengths - Standard or Long.
          Bit Style--> Standard Long
   Outside Diameter 1-1/4" 1-1/4"
   Total Bit length 3-1/2" 5"
   Max Drilling Depth 1-5/8" 3-1/8"

     *  Heavy-Duty Professional Quality.
     *  Long-life compared to Bonded Bits.
     *  Fits any 3/8" hand drill or drill press.
     *  Optional Pilot Bit available below.
     *  Use water for lubrication & cooling.

Do not use with hammer drill.
Consult usage instructions below.

More Details
Specifications

Instructions

Pilot Bit

Questions

Reviews

1-1/4 Diamond Tile Drill Bit Burst
1-1/4" Standard Bit
$64.75 each
Quantity:

1-1/4" 'Long' Bit
$77.70 each
Quantity:

In Stock
Ready for Shipment
Standard Delivery
via Priority Mail
2-3 day delivery






 People Also Viewed

1-1/8 Inch Diamond Drill Bit
$68.75
1-1/8" Pro-Sintered
Diamond Drill Bit
1-3/8 Inch Heavy-Duty Diamond Drill Bit
$69.75 - $83.70
1-3/8" Pro-Sintered
Diamond Drill Bit
Sintered Tile Drill Bits
Bonded
Diamond Drill Bits
All Sizes Page
Water Swivel for Pro-Sintered Diamond Drill Bit

Pro-Sintered Bits
All Sizes Page
Bonded Diamond Drill Bits for Glass and Tile
$125.00
10mm Water Swivel
For Pro-Sintered Bits








 Detailed Description

Return to Top

Designed for Heavy-Duty Drilling In
  Porcelain Tile Brick Concrete Marble
  Ceramic Tile Block Sandstone Granite
  Masonry Cement Limestone Quartz


Designed for materials to about 2" thick.
The "Long" Bit style can drill to about 3" thick.
Not recommended for glass.
Diamond Drill Bit Sizes from 1/8" to 5"

DiamondSure brand Pro-Sintered Diamond Drill Bits are also know as Sintered Diamond Core Drill Bits or Sintered Diamond Hole Saws.  These are professional quality, heavy-duty diamond drill bits designed for use on ceramic tile, porcelain tile, limestone, sandstone, marble, granite, quartz and other stone, plus bricks, masonry, concrete block, and concrete.  Water must be used for lubrication.

Sintered diamond drill bits are not very effective for glass type materials or softer stone materials such as slate and are not recommended for use on glass or slate.  Bonded diamond bits are much more effective for those types of materials.  See DiamondSure Bonded Diamond Drill Bits

Sintered diamond drill bits have the diamonds embedded into the metal of the drill bit tip rather than merely "bonded" to the tip as with bonded diamond drill bits.  As the tip wears down on a sintered diamond drill bit, new diamonds come to the surface.

Sintered diamond drill bits are heavy-duty bits designed for long life.  Generally, sintered bits will have a long life of 20 to 30 or more times the life of a bonded diamond drill bit, if used properly.  The heavy-duty design provides long life when drilling in very hard materials such as porcelain tile, granite and hard stones.

There are some disadvantages.  Sintered bits are more expensive than bonded diamond bits and the thick heavy-duty tip causes them to drill more slowly than thin-wall bonded diamond drill bits.  However, for highly repetitive drilling in hard mateirals, the higher cost of the Sintered Diamond Drill Bits is well worth it because of the much longer drill bit life.  Sintered bits are also necessary for drilling beyond about 1/2" deep as the heavy-duty design can withstand the severe heat of deeper drilling in hard materials.

Diamond drill bits are easy to use, but many drilling techniques are different from standard drilling.  To assist our customers, basic Instructions are presented below and we have also compiled a detailed Drilling Tips & Techniques section.

 Specifications

Return to Top

Brand Name: DiamondSure
SKU / Model: Standard 900-042  Long 900-042L
Drill Bit Size: 1-1/4" OSD
Max Drilling Depth: Standard 1-3/4"   Long 3-1/8"



Specs:

.
Pro
Sintered

Long
Pro
Sintered
Fractional Size:

1-1/4"

same
Tip Style:

Hollow

same
OSD - Metric:

32mm

same
OSD - US:

1.26"

same
ISD - Metric:

25.8mm

same
ISD - US:

1.02"

same
Shaft Diameter:

10mm

same
Sidewall Thickness:

2.5mm

same
Shaft Length:

1"

same
Bell Inside Depth:

1-3/4"

3-1/4"
Total Bit Length

3-1/2"

5"
Optional Pilot Bit:

Yes

Yes

Other: Drill bit requires water for lubrication and cooling.
  Raise the drill bit up slightly every 30-40 sec,
to allow water to penetrate to the drilling tip.
  Proper drilling speed, pressure and lubrication are necessary to keep the bit from over heating when drilling in very hard materials.
  Do not use with a hammer impact drill.






 Instructions

Return to Top

Pro-Sintered Drill Bits - Water Lubrication

Water must be used for lubrication.  There are many ways to lubricate the drilling, as explained in our Drilling Tips & Techniques page.

It is important to "pump" the drill every 30-40 seconds, to allow water to seep to the drilling tip area.  Merely raise the drill bit slightly to allow water to flow to the tip and keep the tip from running dry.  This simple technique helps keep the drill bit from overheating, extends the bit life considerably and helps avoid causing "heat fractures" in the work material.

Simple lubrication methods include drilling under water in a cake pan or tub, using a small clay "dam" around the drill hole area or even using a spray bottle to spray water directly into the drill slot.  These simple lubrication methods are very effective when used properly and they work well for most drilling applications.

Another effective lubrication method and the one used by many professionals, is to use a Water Swivel, also know as a Water Feed System.

All DiamondSure Pro-Sintered Drill Bits have a shaft size of 10mm.  Our water swivel section includes the DX-902 Swivel with a 10mm Collet, designed for use with drill bits that have 10mm shafts, such as the DiamondSure Pro-Sintered bits.  See: Water Swivel Devices

IMPORTANT
Diamond drill bits require use of proper lubrication,
correct drill speed and proper pressure.
Drilling methods and techniques can vary significantly
depending upon the specific material being drilled.
Please See: Drilling Tips & Techniques

Starting a Hole Saw / Core Drill and
Using A Center Pilot Starter Bit

Starting a hollow core drill / hole saw style drill bit can sometimes be difficult.  Our Drilling Tips & Techniques section discusses the various starting methods.

Method 1:  To start drilling, you can usually hold the tip in place with your fingers while running the drill at a very slow speed.  Once the bit has created a slight 'groove', the drill bit will remain stationary on it's own.

Method 2:  For smaller drill bits, you can also hold the drill at a 60 degree angle while running the drill at a very slow speed.  As the drill bit begins to drill, slowly tilt the drill bit up to vertical.  Once the bit has created a slight 'groove', the bit will remain positioned.

Method 3:  A template can be made by drilling a pilot hole, the size of the diamond drill bit, in a piece of soft wood or plastic.  Hold the template in place over your drilling area and use the 'pilot hole' to hold the drill bit in place when beginning to drill. You can also use a "V" on the edge of a starting template to help hold many sizes of core drill bits.

Starting Diamond Drill in Tile

Method 4:  The Pro-Sintered Drill Bits for sizes 1-1/4" and above are also designed to accept a Center Pilot Bit.  An optional Pilot Bit is available below.  However, we do not recommend using a Pilot Bit in extremely hard materials, for the reasons discussed below.  Starting Methods 1 - 3 above are very effective and do not interfere with the performance of the diamond drill bit.

 Recommended Speed / Pressure

Return to Top

It is very important to use proper drilling techniques to keep a diamond drill bit from over heating and to avoid causing "heat fractures" in the material being drilled.  Proper drill speed, low pressure and good water lubrication are very important factors.

DiamondSure
Pro-Sintered Diamond Drill Bits
Recommended Drill Speeds

DiamondSure
Sintered Bits

Recommended Drill Speed (rpm)

Material         Bit Size -->

1/2"

1"

2"

3"

4"
 Glass & Fiberglass

Not Recommended
 Slate or soft stone

Not Recommended
 Limestone & Marble Stone

1600

800

400

300

200
 Concrete & Masonry

1600

800

400

300

200
 Ceramic Wall Tile

1600

800

400

300

200
 Porcelain Wall Tile

1200

600

300

225

150
 Porcelain Floor Tile

1200

600

300

225

150
 Granite Stone

1200

600

300

225

150

Designed for long-term use in materials up to 1-3/4" thick
(Not for use with Hammer Drills)


DiamondSure
Pro-Sintered Diamond Drill Bits
Recommended Drill Head Pressure

Material

Drill Head Pressure - Lbs*

Material   Bit Size -->

to 1/2"

1/2"-1"

1"- 2"

2"- 3"

3"- 4"
 Glass & Fiberglass

Not Recommended
 Slate or soft stone

Not Recommended
 Limestone & Marble 12 -18 18 -26 24 -36 32 -50 45 -60
 Porcelain Wall Tile 15 -24 20 -30 30 -45 40 -60 50 -75
 Porcelain Floor Tile 20 -30 30 -45 40 -60 50 -75 60 -95
 Granite & Quartz 20 -30 30 -45 40 -60 50 -75 60 -95

WARNING:  Drill press arm gears leverage hand pressure by a factor of about 6 to 8.  So 2 lbs of hand pressure on the drill press arm can apply up to 16 lbs of pressure to the drill head.






 Optional Pilot Bit

Return to Top

Using A Center Pilot Starter Bit

Starting a hollow core drill / hole saw style drill bit can sometimes be difficult. Various starting methods are discussed the instructions section above.

The Pro-Sintered Drill Bits of 1-1/4" and above are designed to accept a Center Pilot Bit.  An optional Pilot Bit is available below.  However, we do not recommend using a Pilot Bit in hard materials because of the reasons discussed below.


Diamond drill bit with center pilot bit
Diamond Drill Bit with
optional pilot bit.

If a Center Pilot Bit is used to start the drill bit, it is important to remove the pilot bit as soon as possible after the diamond drill bit has started drilling.

The carbide pilot bits cause the diamond bit to drill very slowly so it should be removed when no longer needed.

Also, the carbide pilot bit will wear out quickly when drilling in very hard materials, so it should not be used any longer than necessary.

Optional Center Pilot Bit
for Pro-Sintered Diamond Drill Bits

Center pilot bit
(available in two lengths)

Price
  Qty     Order?
DX-199  Pilot Bit - Standard

2.75


DX-299  Pilot Bit - Long

3.50
