 You Are Here:  Diamond Drill Bit & Tool: Home > Taurus 3 Ring Saw, Blades, Parts & Accessories


- Make a Selection or Scroll Down -

Taurus 2 Ring Saw
Diamond Ring Saw - Taurus 2 Ring Saw

Powerful Professional Ring Saw
Ridged non-flex ring blade provides more control than any bandsaw, cuts in any direction and grinds as it cuts.

Taurus 3 Ring Saw
Diamond Ring Saw - Taurus 3 Ring Saw

Top Professional Diamond Ring Saw
Convertible to hand-held saw, improved low-maintenance drive system, larger work surface, face shield and built-in light

Taurus 2
Accessory Kit

Taurus 2
Blade Packs

Taurus 2
Misc Parts


Taurus 3
Accessory Kit

Taurus 3
Blade Packs

Taurus 3
Misc Parts





Go to top of Page

Return to Previous Section



Taurus Ring Saw

Taurus 3 Ring Saw
Click for Large Pictures

Special
On-Line Salel!




Taurus Ring Saw Video on YouTube!

 See the Taurus 3 Ring Saw in action!

 <Click Here>















Taurus 3 Ring Saw Hand Held Unit
Saw is removable from case
for hand scroll work.









Taurus 3 Ring Saw

Taurus Ring Saw
Click for Large Pictures

Special
On-Line Salel!









Taurus 3 Ring Saw

Professional Diamond Ring Saw for Glass & Tile

Brand New Saws in Factory Sealed Boxes

  • Cuts All Types of Glass
  • Cuts Ceramic Tile, Plastic, & Stone
  • Ring Blade Cuts in All Directions
  • Ridged Blade Has Outstanding Control
  • Blades Last Longer than Bandsaws
  • Grinds as it Cuts - No Sharp Edges

Taurus 3 - New Features
  • Hand-Held Option for Hand Scroll Work
  • Large 18" x 12" Work Surface
  • Improved Drive System - Less Maintenance
  • Blade Stabilizer for exacting control
  • Built-In Light Illuminates Cutting Surface
  • Build-In Face Shield for Added Safety
  • Uses Same 5-/4" Ring Blades as Taurus 2
  • Includes DVD Usage & Instruction Video
  • Optional Heavy-Duty 'Mega Blade' Designed for Thick Plate Glass, Tile and Stone

The Taurus 3 Ring Saw is the top-of-the-line in professional level rings saws!  The unique 5-3/4" ring blade of the Taurus 3 has diamonds on all sides (not just on the front) so the blade cuts in any direction.  Plus the seamless stainless steel ring blade is ridged and doesn't 'flex' or 'float' like bandsaw blades.  The Taurus saw has a powerful 1/5 horse power motor.

The Taurus 3 saw has a convenient snap-open side housing for easy access to blade, belt and motor.  Large 18" x 12" work surface is easily removed for cleaning.   Includes standard 5-3/4" diamond blade and DVD instruction video.

The Taurus Ring Saw has a new hand-held feature, that allows you to remove motor saw unit from the saw case for hand scroll work.  Improved heavy-duty drive system provides reduced maintenance.  Saw has an oversized 18" x 12" work surface, flip-up face shield and built-in light system.  The Taurus 3 Ring Saw comes with a standard ring blade mounted on the saw.  An optional 'Mega Blade' exclusively for the Taurus 3, is super heavy-duty - designed specifically for thick plate glass, tile and stone.  An optional Snap-Apart blade is also available for inserting blade into a drilled hole, to allow cutting without side entry cuts using the Taurus 3 Ring Saw.

Taurus 3 Ring Saws are brand new in factory sealed boxes.
They are NOT referbished or re-manufactured.
Our high volume allows us to give our customers a great price!

If you've never used a ring saw - prepare to be amazed!

  Case Size:  18" wide x 16" deep
  Table Size:  18" wide x 12" deep
  Weight:  14 lbs.
  Motor:  1/5 hp, 115 vac, single speed
  Blade:  5-3/4" seamless stainless steel ring
  Lubrication:  Water Pick-up, 6 liter reservoir
  Throat Depth:  5-1/2"   Throat Height:  1-1/2"
  Upper Blade Guide Height:  1-1/2"
  Warranty:  Three Years (excl. blade)
  Shipping Weight:  18 Lbs.

SAVE - Mfgr reg price $575.00
On-Line Sale $331.00!

$AVE 40%


TL-450  Taurus 3 Diamond Ring Saw ...................................... 331.00

Brand New Saws, In Stock & Ready To Ship!

Add to Shopping Cart? Quantity:


Taurus 3 Accessories - Scroll Down










Go to top of Page

Return to Previous Section



 Taurus 3 Accessory Kit

Taurus 3 Ring Saw Kit

Taurus 3 - Accessory Kit

Taurus 3 Ring Saw Accessory Kit

Accessory Kit for the Taurus 3 diamond ring saw adds increased versatility to the powerful saw  The kit includes the same items as the Taurus II Accessory Kit, except for the face shield and spot light, which are incorporated into the basic case design on the Taurus 3 saw.

Kit includes, straight-edge guide, 10 degree and 45 degree miter guides (for lamp edges and box corners), 30-60-90 degree cut-off triangle guides, and circle guide (up to 15-3/4" diameter circles).  An instruction video is also included covering use of the accessory kit items, plus it has a section on using the optional "separating blade".



TL-449  Taurus 3 Accessory Kit ............................................... 19.95

Add to Shopping Cart? Quantity:


MORE Taurus Accessories: Scroll Down








Go to top of Page

Return to Previous Section



Taurus 3 Ring Saw Blades











































Taurus Diamond Ring Blade
Separating Ring Blade
Allows inserting blade
into drilled hole!

Taurus 3 Ring Saw Blades

Taurus 3 diamond ring saw blades are 5-3/4" in diameter seamless diamond coated blades.  The standard Taurus diamond ring saw blade is .070"/80 grit for use on glass, tile and stone.  All Taurus 3 ring saw blades include replacement grommets (2 orange grommets in each blade pack).

The separating 'snap-apart' .070"/80 blade allows you to insert the blade into a drilled hole.  This lets you cut a piece out of the middle of material without having an 'entry-cut' from the edge.

The heavy-duty 'Mega Blade' is designed specifically for the Taurus 3 saw for improved cutting of fused glass, thick plate glass, ceramic tile, porcelain tile, and stone tile.  The Mega Blad has a tear drop shape with the point facing inward.

The Slim "jeweler's" blade is .050"/80 grit is designed for very detailed, fine cutting work.  The slim blade thickness of .050" is about 30% thinner than the standard Taurus ring blades.

The Slim/Fine 'Dichro' blade is .050"/120 grit is designed for intricate work with less waste and very fine grit for less chipping.  It is intended for use on dichroic glass, irridescent glass, jewlery, etc.

The heavy-duty 'Speed Blade' is designed for aggressive cutting of fused glass, thick plate glass, ceramic tile, porcelain tile, and stone tile.  The Speed Blade is the "inverted Mega Blade" with the point of the tear drop shape facing outward.  This blade includes the flocked belt, as the standard belt will not handle the blades sharp tip.

The Slicer Blade is .040"/100 grit is a flat blade that is designed for repeated foward and backward cutting.  The blade is designed for use with the 'Super Slicer' attachment.  It is also recommended that the flocked belt be used with this blade.

Note:  The Taurus 2 and Taurus 3 ring saw blades are interchangeable, with two exceptions.  While the Standard, Slim and Snap-apart blades are exactly the same for both saw models, the replacement grommets included with the blade pack differ for the Taurus 2 and Taurus 3 style blade pack.  Also, the heavy-duty 'Mega Blade', 'Speed Blade', and 'Slicer Blade' are only available for the Taurus 3 model ring saw and will not fit on the Taurus 2 model saw.

Mix any quantity of 3 or more Taurus blades for lower price.  Be sure to use the "Mix" price buttons.  If an incorrect price button is used for the quantity purchased, the price will be adjusted appropriately when the order is processed.

Taurus 3 Ring Blades:

TL-443  Standard Ring Saw Blade - Taurus 3 .......... each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


TL-447  Separating, 'snap-apart' Blade - Taurus 3 .... each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


TL-436  Mega Blade Ring Saw Blade - Taurus 3 .... each 84.75 / 3+ 79.95
                                            SAVE! -Regular List Price $99.95

----------------- Each -----------------
Qty: @ 84.75

--- Mix any 3+ Ring Blades ---
Qty: @ 79.95


TL-440  Slim Jeweler's Blade - Taurus 3 ................. each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


TL-435  Slim/Fine 'Dichro' Blade - Taurus 3 ........... each 84.75 / 3+ 79.95
                                            SAVE! -Regular List Price $99.95

----------------- Each -----------------
Qty: @ 84.75

--- Mix any 3+ Ring Blades ---
Qty: @ 79.95


TL-438  Speed Blade with Flocked Belt - Taurus3 . each 114.75 / 3+ 109.95
                                            SAVE! -Regular List Price $135

----------------- Each -----------------
Qty: @ 114.75

--- Mix any 3+ Ring Blades ---
Qty: @ 109.95


TL-439  Slicer Blade - Taurus 3 ......................... each 84.75 / 3+ 79.95

Out of Stock - No Backorders
                                            SAVE! -Regular List Price $99.95

----------------- Each -----------------
Qty: @ 84.75

--- Mix any 3+ Ring Blades ---
Qty: @ 79.95


MORE Taurus Accessories - Scroll Down








Go to top of Page

Return to Previous Section


On-Line
Special

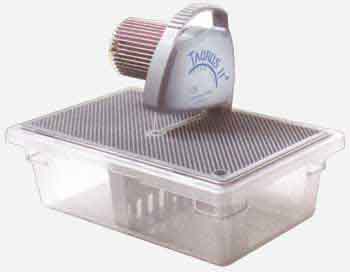

Taurus II Ring Saw

Tarus II Ring Saw
Click for Large Pictures

On-Line Special!



Taurus Diamond Ring Saw

Tarus 2 Ring Saw
Click for Large Pictures

On-Line Special!

Taurus II-2 Ring Saw

    Sorry - Discontinued by Manufacturer

  • Cuts All Types of Glass
  • Cuts Ceramic Tile, Plastic & Stone
  • Ring Blade Cuts in All Directions
  • Blades Last Longer
  • Grinds as it Cuts
A professional level diamond ring saw at a price everyone can afford.  The unique 5-3/4" ring blade has diamonds on all sides (not just on the front) so the blade cuts in any direction.  Plus the seamless stainless steel ring blade is ridged and doesn't 'flex' or 'float' like bandsaw blades.  Powerful 1/5 horse power motor.  Saw has convenient snap-open side housing for easy access to blade, belt and motor.  Large 16" x 10" work surface is easily removed for cleaning.  Includes standard 5-3/4" diamond blade.  Optional Snap-Apart diamond ring saw blade is also available for inserting blade into a drilled hole to allow cutting without side entry cuts.

The Taurus 2 Ring Saw was discontinued by the manufacturer, Gemini Saw Company, after the introduction of the Taurus 3 Ring Saw. The Taurus II saw was a great saw, however, the new Taurus 3 model had many improvements.  The Taurus 3 added a much more heavy-duty, low maitenance drive system in addition to a larger work surface, blade stabilizer, built-in work light, etc.

The Taurus II Ring Saw specification are shown below for reference purposes. Further below are Taurus II blades, parts and accessories, which we continue to sell to support the large number of customers who have Taurus II Ring Saws.

Taurus 2 Ring Saw Specifications

  Case Size:  18" wide x 10" deep
  Table Size:  16" wide x 10" deep
  Weight:  12 lbs.
  Motor:  1/5 hp, 115 vac, single speed
  Blade:  5-3/4" seamless stainless steel ring
  Lubrication:  Water Pick-up, 6 liter reservoir
  Throat Depth:  5-1/2"   Throat Height:  1-1/4"
  Upper Blade Guide Height:  1-1/4"
  Warranty:  Two Years (excl. blade)


Taurus Accessories - Scroll Down










Go to top of Page

Return to Previous Section



 Taurus Ring Saw Accessory Kit

Taurus II Ring Saw Kit

Taurus II - Accessory Kit

Taurus II Ring Saw Accessory Kit

Accessory Kit for the Taurus II diamond ring saw adds increased versatility to the powerful saw.  Kit includes face shield, spot light, straight-edge guide, 10 degree and 45 degree miter guides (for lamp edges and box corners), 30-60-90 degree cut-off triangle guides, and circle guide (up to 15-3/4" diameter circles).  An instruction video is also included covering use of the accessory kit items, plus it has a section on using the optional "separating blade".  The light and face shield are also available separately, below.

         Out of Stock - Backorders Not Available

TL-429  Taurus II Accessory Kit ............................................... 49.95

Add to Shopping Cart? Quantity:


Taurus 3 Accessory Kit: Scroll Down






Go to top of Page

Return to Previous Section



Taurus Diamond Ring Blade





































Taurus Separating Ring Blade
Separating Ring Blade
Allows inserting blade
into drilled hole!

Taurus 2 Ring Saw Blades

Taurus II diamond ring saw blades are 5-3/4" in diameter seamless diamond coated blades.  The standard Taurus diamond ring saw blade is .070"/80 grit for use on glass, tile and stone.  All Taurus 2 ring saw blades include replacement grommets (3 yellow & 4 red grommets in each blade pack).

The Slim "jeweler's" blade is .050"/80 grit is designed for very detailed, fine cutting work.  The slim blade thickness of .050" is about 30% thinner than the standard Taurus ring blades.

The separating 'snap-apart' blade allows you to insert the blade into a drilled hole.  This lets you cut a piece out of the middle of material without having an 'entry-cut' from the edge.

Note:  The Taurus 2 and Taurus 3 ring saw blades are interchangeable, with two exceptions.  While the Standard, Slim and Snap-apart blades are exactly the same for both saw models, the replacement grommets included with the blade pack differ for the Taurus 2 and Taurus 3 style blade pack.  Also, the heavy-duty 'Mega Blade' is only available for, the Taurus 3 model ring saw and will only fit on that model saw.

Mix any quantity of 3 or more Taurus blades for lower price.  Be sure to use the "Mix" price buttons.  If an incorrect price button is used for the quantity purchased, the price will be adjusted appropriately when the order is processed.

Taurus 2 Ring Blades:

TL-421  Standard Ring Saw Blade - Taurus 2 .......... each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


TL-430  Slim Jeweler's Blade - Taurus 2 ................. each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


TL-432  Separating, 'snap-apart' Ring Blade ... each 73.75 / 3+ 69.95
                                            SAVE! -Regular List Price $89.95

----------------- Each -----------------
Qty: @ 73.75

--- Mix any 3+ Ring Blades ---
Qty: @ 69.95


MORE Taurus Accessories - Scroll Down








Go to top of Page

Return to Previous Section

Taurus II Ring Saw - Misc Parts

- Guides/Bearings/Belts/Misc -

Checkbox

Qty

Price

TL-424  Replacement Red Blade Guide Grommets (pkg of 4)

9.89

TL-425  Replacement Yellow Blade Guide Grommets (pkg of 4)

8.95

TL-426  Replacement R2 Bearings (2-pack, for red/yellow guides)

 14.95

TL-423  Replacement Blue Pully Assembly (includes bearing)

9.95

TL-428  Replacement Drive Belt - Standard Belt

19.75

TL-431  Replacement Drive Belt - Heavy-Duty Flocked Belt

35.75

TL-433  Taurus II-2 Blade Raceway (does not fit old Taurus II model)

6.95

TL-437  Taurus II-2 Drive Pulley (Geared Teeth, does not fit old T II model)





9.95

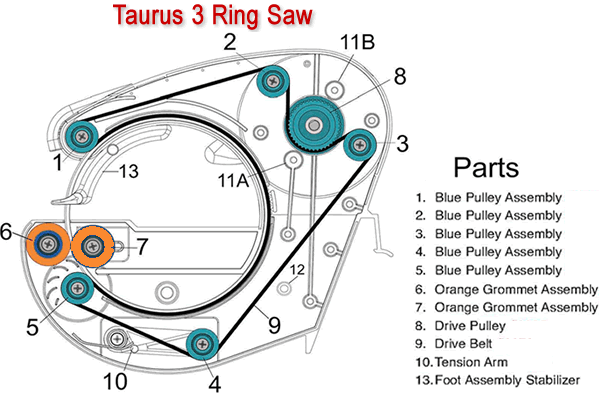

  Taurus 3 Ring Saw Diagram

Go to top of Page
Return to Previous Section

Taurus 3 Ring Saw Parts

- Guides/Bearings/Belts/Misc -

Checkbox

Qty

Price

TL-442  Replacement Orange Grommet, pkg of 2 (bearing not included)
                (Grommet # 6 & 7 from picture above)

 7.95

TL-441  Replacement Orange Grommet Assembly (includes bearing)
                (Grommet # 6 & 7 from picture above)

 15.95

TL-422  Large Blue Pully (includes bearing)
                (Pulley # 1, 2, 3, 5 from picture above)

 9.95

TL-423  Blue Tension Arm Pully (includes bearing)
                (Pulley # 4 from picture above)

 9.95

TL-445  Replacement Face Shield
            Out of Stock - No Backorders

7.95

TL-428  Replacement Drive Belt - Standard Belt

19.75

TL-431  Replacement Drive Belt - Heavy-Duty Flocked Belt

35.75

TL-437  Drive Pully (Geared Teeth)
                (Pulley # 8 from picture above)

 9.95

TL-456  Replacement Blade Stabilizer Foot
                (# 13 from picture above)

 17.75

TL-457  Replacement Tension Arm with Spring
                (# 10 from picture above)



 6.95
