Water Swivel

Water Swivel Lubrication Devices

For drilling in Glass, Tile, Stone, Concrete, etc

Diamond drill bits require water to lubricate and cool the drill bit.  There are many ways to lubricate the drilling with water, as explained in our Drilling Tips & Techniques section.  One of the most effective methods and the one used by most professionals is to use a Water Swivel, also know as a Water Feed Swivel or Water Feed System.

A Water Swivel injects water into the center hole of the drill bit shaft while it is drilling.  The Swivel "feeds" water lubrication directly into the center of the bit, the water escapes around the tip and bubbles up around the outside of the hole.  A Water Swivel Lubrication System forces water to the tip of the drill bit and also cools the inside and outside of the bit.

Water Feed Drill Press
Water Swivel mounted in drill press chuck.


DiamondSure Pro-Sintered Diamond Drill Bit

Diamond drill bit with a
water feed hole in the
center of the bit shank.


Water Swivel Water Feed Bottle
Water Feed Bottle.


Diamond Drill Water Feed Device
Note 1/4" Male
Quick-Connect fitting.


A Water Swivel is a very effective tool.  However, there are many types of power drill mounts in addition to many types of drill bit mounts.  It is very important to make sure that you get the correct Water Swivel to match with the specific power drill mount and drill bit mount that are being used.  Additionally, the drill bit must have a water lubrication hole in the bit shank or mount, to allow the Water Swivel to pass water to the tip.

The picture above shows a drill press with a standard drill chuck.  The drill bit is a DiamondSure Pro-Sintered Diamond Drill Bit, which has a 10mm shaft.  So, the Water Swivel device used above is the DX-902 Water Swivel which has a 3/8" shaft to mate with the drill chuck and a 10mm Collet to mate with the 10mm shaft on the drill bits.

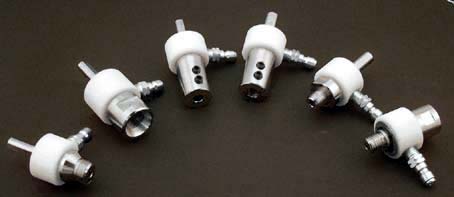

Many different Water Swivels are available below to meet the needs of most drilling situations.  The water line used to provide water to the Swivel will vary depending upon each specific drilling application.  A portable Water Feed Bottle, designed for use in temporary drilling applications, is also available in the Water Swivel accessories section of this page.

Each Water Swivel below has a standard 1/4" Quick-Connect Male fitting to connect to the water supply.  The fitting on the Water Swivels will mate with a standard Female 1/4" Quick-Connect fitting that is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel accessories section of this page

Some water feed installations also add a small shutoff valve at the Swivel fitting connection, to allow the operator to adjust water flow while drilling.  Many different types of valves are available at local hardware stores.

Water Swivel Devices & Accessories Available Below:

  Drill Swivels:
 DX-902     3/8" Shank to 10mm Collet
 DX-903     1/2" Shank to 1/2" Collet
 DX-905     1/2" Shank to G1/2"-14 Female
 DX-906     1/2" Shank to G1/2"-14 Male
 DX-910     1/2" Shank to 5/8"-11 Female
 DX-911     1/2" Shank to 5/8"-11 Male
 DX-912     5/8"-11 Male to 5/8"-11 Female
 DX-912     5/8"-11 Female to 5/8"-11 Male

  Accessories:
 DX-990     Portable Water Bottle & Pump for Water Swivels
 DX-995     Female Coupler - Quick Connect 1/4" NPT-F
 DX-997     Shut Off Valve for water line









Go to top of Page

Return to Previous Section













































Drill Water Swivel Feed Device
Note 1/4" Male
Quick-Connect fitting.

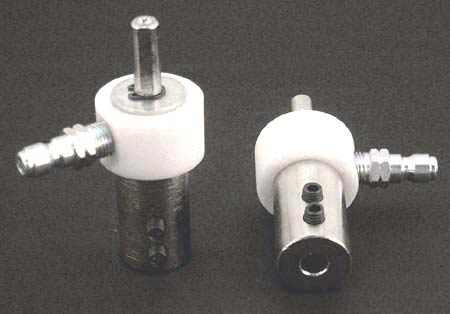

Water Swivel - 3/8" Shank to 10mm Collet

Water Swivel - Water Feed Device

3/8" Shank to 10mm Collet
Fits DiamondSure Pro-Sintered Diamond Bits

The 3/8" Shank to 10mm Collet Water Swivel is designed to attach to a standard 3/8" or larger power drill chuck and mate with drill bits that have a 10mm shaft and a center lubrication hole.  The DiamondSure Pro-Sintered Diamond Drill Bits all have 10mm shafts.

Diamond Drill Bits Water Feed Setup
The swivel's 10mm Collet is designed to mate with a drill bit that has a
10mm shaft and center lubrication hole, similar to the DiamondSure
Pro-Sintered Diamond Drill Bit
shown on the left.

The Water Feed Device has a triangular flat rounded 3/8" (10mm/0.39") shank to attach to a standard 3/8" or larger power drill chuck.  The 10mm collet has dual Allen set screws to securely attach to a 10mm drill bit shaft.  The drill bit shaft must have a center water feed lubrication hole.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications and a shut-off valve are also available in the Water Swivel Accessories section at the bottom of this page.

   See Accessories:  Portable Water Bottle    Quick-Connect Female Fitting    Shut Off Valve

Water Swivel - 3/8" Shank to 10mm Collet:

DX-902  Water Swivel - 3/8" Shank to 10mm Collet ....................... 125.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section








































Drill Water Feed System
Note 1/4" Male
Quick-Connect fitting.



Water Feed - 1/2" Shank to 1/2" Collet

Water Swivel - Water Feed Device
1/2" Shank to 1/2" Collet

The 1/2" Shank to 1/2" Collet Water Swivel is designed attach to a standard 1/2" power drill chuck and mate with drill bits that have a 1/2" shaft and a center lubrication hole.

Diamond Drill Bit for Water Swivel
The swivel's 1/2" Collet is designed to mate with a drill bit that has a 1/2" shaft and center lubrication hole as shown on the left.

The Water Feed Device has a triangular flat rounded 1/2" (12.7mm) shank to mate with a standard 1/2" or larger power drill chuck.  The Swivel also has dual Allen set screws on the 1/2" (12.7mm) collet to securely attach to a 1/2" drill bit shaft.  The drill bit shaft must have a center lubrication hole.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.

Water Swivel - 1/2" Shank to 1/2" Collet:

DX-903  Water Swivel - 1/2" Shank to 1/2" Collet .......................... 145.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section






































Diamond Drill Water Swivel Device
Note 1/4" Male
Quick-Connect fitting.

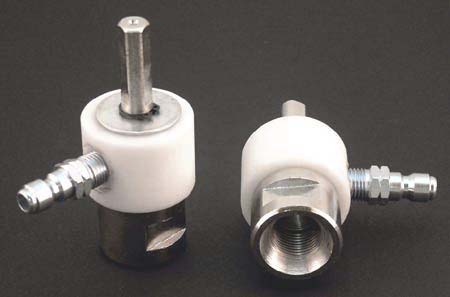

Drill Water Swivel - 1/2" Shank to G12-14 Female

Water Swivel - Water Feed Device
1/2" Shank to G1/2"-14 Female

The 1/2" Shank (12mm) to G1/2"-14 Female Water Swivel is designed to attach to a standard 1/2" power drill chuck and mate with drill bits that have a G1/2"-14 threaded male drill bit mount and a center lubrication hole.

G1/2" Male Diamond Drill Bit
The Swivel's G1/2"-14 Female thread
is designed to mate with a drill
bit that has a G1/2"-14 Male
threaded mount as shown on the left.

The Water Feed Device has a triangular flat rounded 1/2" (12mm) shank to mate with a standard 1/2" or larger power drill chuck.  The 1/2" shank actually measures 12mm in diameter.

Note:  The 'G' in the G1/2" thread designation is indication of British Gas Pipe Thread, also known as BSPP for British Standard Pipe Parallel.  The inside diameter of standard British 1/2" gas pipe is 1/2" and the outside diameter is 0.8250" (13/16").  It also uses the British "Whitworth" thread form, while standard US threads use a slightly different thread style, called the "Sellers" thread form.  If the G-1/2" thread were translated into a US thread size, it would be very similar to a 13/16"-14 thread.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.

Water Swivel - 1/2" Shank to G1/2"-14 Female:

DX-905  Water Swivel - 1/2" Shank to G1/2"-14 Female .................. 145.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section






































Diamond Drill Water Swivel Device
Note 1/4" Male
Quick-Connect fitting.

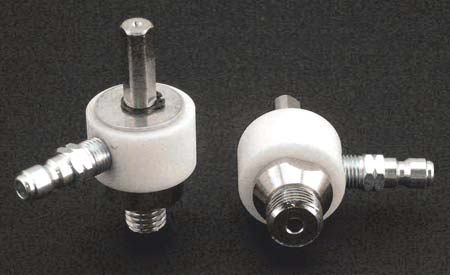

Water Swivel - 1/2" Shank to G1/2"-14 Male

Water Swivel - Water Feed Device
1/2" Shank to G1/2"-14 Male

The 1/2" Shank (12mm) to G1/2"-14 Male Water Swivel is designed to attach to a standard 1/2" power drill chuck and mate with drill bits that have a G1/2"-14 threaded female drill bit mount.

Diamond Drill Bit with Water Swivel drill device
The Swivel's G1/2"-14 Male thread
is designed to mate with a drill
bit that has a G1/2"-14 Female
threaded mount as shown on the left.

The Water Feed Device has a triangular flat rounded 1/2" (12mm) shank to mate with a standard 1/2" or larger power drill chuck.  The 1/2" shank actually measures 12mm in diameter.

Note:  The 'G' in the G1/2" thread designation is indication of British Gas Pipe Thread, also known as BSPP for British Standard Pipe Parallel.  The inside diameter of standard British 1/2" gas pipe is 1/2" and the outside diameter is 0.8250" (13/16").  It also uses the British "Whitworth" thread form, while standard US threads use a slightly different thread style, called the "Sellers" thread form.  If the G-1/2" thread were translated into a US thread size, it would be similar to a 13/16"-14 thread.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.

Water Swivel - 1/2" Shank to G1/2"-14 Male:

DX-906  Water Swivel - 1/2" Shank to G1/2"-14 Male ...................... 145.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section






































Diamond Drill Water Swivel Device
Note 1/4" Male
Quick-Connect fitting.

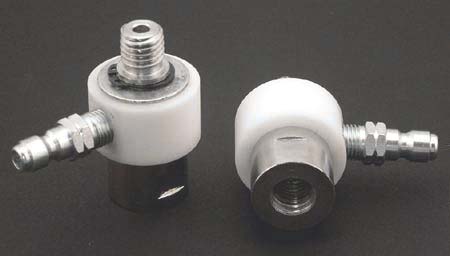

Water Swivel - 1/2" Shank to 5/8"-11 Female

Water Swivel - Water Feed Device
1/2" Shank to 5/8"-11 Female

Sorry - Out of Stock

The 1/2" Shank (12mm) to 5/8"-11 Female Water Swivel is designed to attach to a standard 1/2" power drill chuck and mate with drill bits that have a 5/8"-11 threaded male drill bit mount and a center lubrication hole.

Female Threded Diamond Drill Bit
The Swivel's 5/8"-11 Female thread
is designed to mate with a drill
bit that has a 5/8"-11 Male
threaded mount as shown at left.

The Water Feed Device has a triangular flat rounded 1/2" (12mm) shank to mate with a standard 1/2" or larger power drill chuck.  The 1/2" shank actually measures 12mm in diameter.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.

Water Swivel - 1/2" Shank to 5/8"-11 Female:

                    Out of Stock - No Backorders

DX-910  Water Swivel - 1/2" Shank to 5/8"-11 Female ..................... 145.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section






































Drill Press Water Feed Device
Note 1/4" Male
Quick-Connect fitting.



Water Swivel - 1/2" Shank to 5/8"-11 Male

Water Swivel - Water Feed Device
1/2" Shank to 5/8"-11 Male

The 1/2" Shank (12mm) to 5/8"-11 Male Water Swivel is designed to attach to a standard 1/2" power drill chuck and mate with drill bits that have a 5/8"-11 threaded female drill bit mount.

5/8"-11 Female Diamond Drill Bit
The Swivel's 5/8"-11 Male thread
is designed to mate with a drill
bit that has a 5/8"-11 Female
threaded mount as shown at left.

The Water Feed Device has a triangular flat rounded 1/2" (12mm) shank to mate with a standard 1/2" or larger power drill chuck.  The 1/2" shank actually measures 12mm in diameter.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting, which is available at most Tool and Hardware stores.  A Female Coupling fitting is also available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.   Portable Water Bottle

Water Swivel - 1/2" Shank to 5/8"-11 Male:

DX-911  Water Swivel - 1/2" Shank to 5/8"-11 Male ...................... 145.00

Add to Shopping Cart? Quantity:









Go to top of Page

Return to Previous Section





























Diamond Drill Water Feed Device
Note 1/4" Male
Quick-Connect fitting.



Drill Water Swivel - 5/8"-11 Male to 5/8"-11 Female

Water Swivel - Water Feed Device
5/8"-11 Female to 5/8"-11 Male
or
5/8"-11 Male to 5/8"-11 Female

The 5/8"-11 Female to 5/8"-11 Male Water Swivel is designed to attach to a 5/8"-11 male power drill mount and mate with a 5/8"-11 threaded female drill bit mount.  The Swivel can also be "turned over", to attach to a 5/8"-11 female power drill drill mount and mate with a 5/8"-11 threaded male drill bit mount.

The Water Swivel has a Male 1/4" Quick-Connect fitting for attaching to a water source.  The Swivel fitting is designed to connect to a standard Female Coupling 1/4" Quick-Connect fitting.  A Female Coupling fitting is available at most Tool and Hardware stores or is available as an optional item in the Water Swivel Accessories section of this page.

There are many different possibilities for connecting the Water Swivel to a water source.  The pipe, tubing or hose lines will vary significantly depending upon each specific situation.  A portable water bottle designed for use in temporary drilling applications is also available in the Water Swivel Accessories section at the bottom of this page.

Water Swivel - 5/8"-11 Female to 5/8"-11 Male:

DX-912  Water Swivel - 5/8"-11 Female to 5/8"-11 Male ................ 145.00

Add to Shopping Cart? Quantity:











Go to top of Page

Return to Previous Section

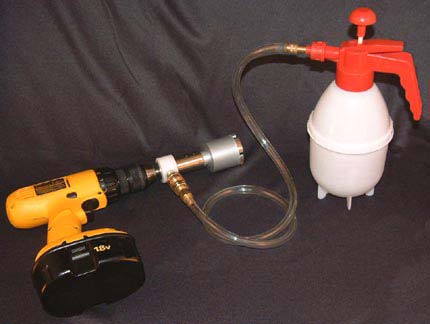

Water Feed Bottle at right, is
shown attached to a portable
power drill with water swivel
and diamond drill bit.











Water Swivel Water Feed Bottle
Water Feed Bottle



Wate Swivel Portable Water Bottle

Water Feed Bottle

Attaches to Power Drill Water Swivel

A portable water bottle is perfect for jobs where a direct water line is not reasonable.  The 1-liter (34 oz) bottle has a pump to pressurize the bottle, a flow lever valve and a 3-1/2 ft. clear 5/16" diameter hose.

The Water Swivels above, all come with a Male Quick-Connect fitting for attaching to a water source.  The 5/16" hose of the Water Feed Bottle can be attached directly, over the Male Quick-Connect fitting, or a Female Quick-Connect fitting can be used with a 5/16" hose connector.  Some portable installations also add a small shutoff valve to the Swivel fitting connection, to allow the operator to adjust water flow while drilling.

Water Swivel - Water Feed Bottle:

DX-990  Water Feed Bottle, w/Pump ......................................... 18.75

Add to Shopping Cart? Quantity:



Scroll down for additional accessories








Go to top of Page

Return to Previous Section

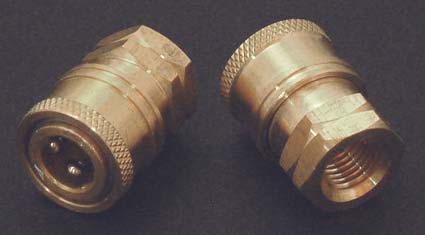

Photo at right, shows both
ends of the Female 1/4"
Quick-Connect Coupler.











Brass Female 1/4" Coupler
Female Quick-Connect



Female Coupler - 1/4" Quick-Connect

Female Coupler - 1/4" Quick-Connect

Attaches to Water Swivel Fitting

Brass Female Coupler is a 1/4" Quick Connect fitting.  The female coupler is designed to mate with the male Quick-Connect fitting on the Water Swivels, above.  The threaded end of the coupling is Female 1/4" NPT which is US standard 1/4" pipe thread.

Female Coupler - 1/4" Quick-Connect:

DX-995  Female Coupler - 1/4" Quick-Connect ............................ 8.95

Add to Shopping Cart? Quantity:



Scroll down for additional accessories








Go to top of Page

Return to Previous Section




















Shut Off Valve
Shut Off Valve



Shut Off Valve - 1/4 inch ball valve

Shut Off Valve

Attaches to Drill Swivel or Connector

A shut off valve is often added to the water line near the Swivel fitting connection, to allow the operator to easily adjust the water flow while drilling or to turn off the water flow as necessary.

Shut off valve is a "full port ball" style valve which provides full water flow and easy adjustment.  Full on/off is obtained with only 1/4 turn of the valve handle.  The valve has 1/4" NPT male and 1/4" NPT female threads.  Valve is nickle plated and water flow can be in either direction.

Shut Off Valve with 1/4" Fittings:

DX-997  Shut Off Valve with 1/4" Fittings .................................... 7.85

Add to Shopping Cart? Quantity:
